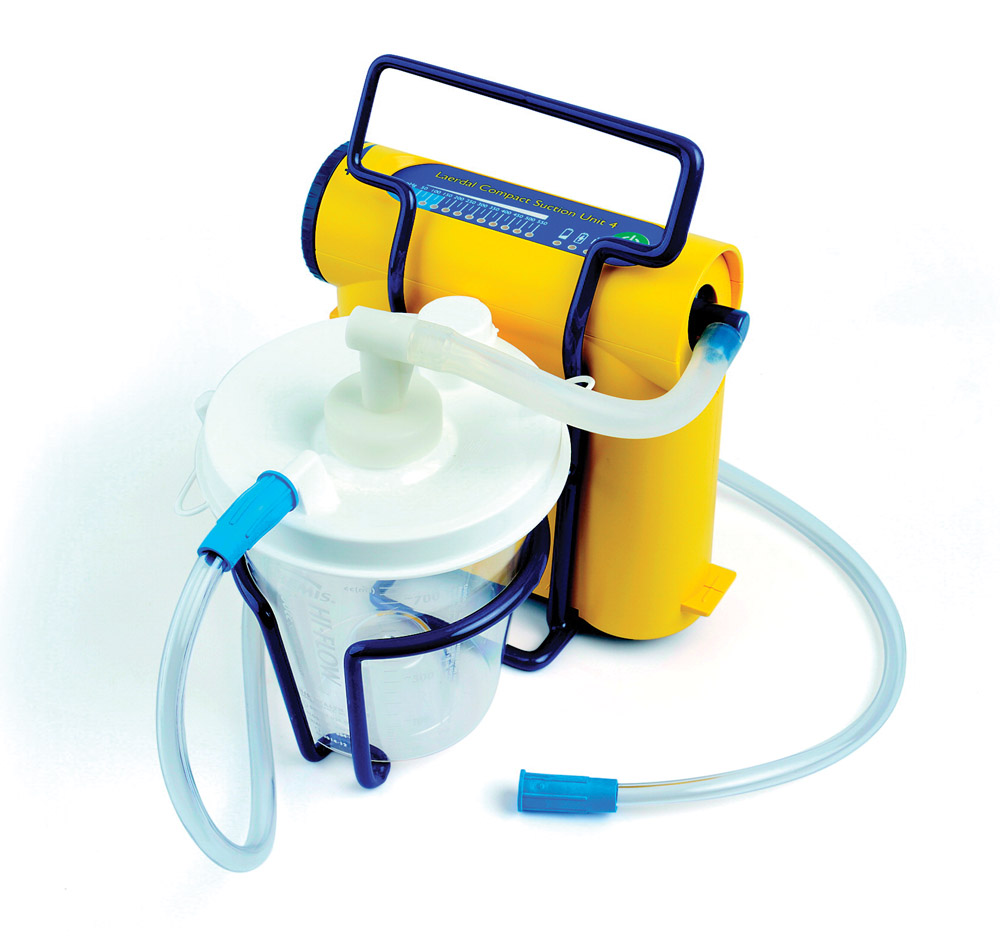

The Laerdal Compact Suction Unit (LCSU) 4 suction unit combines rugged design with lightweight portability, an essential tool for every first responder.
After Laerdals 40 years of suction innovation, the LCSU4 is our most advanced compact unit. Weighing only 1.5kg and having a flow rate of 30 LPM, it is the perfect tool for first responders and medical personnel. The disposable canister removes the hassle of external tubing that could slow down the rescue process.
. The filter stops flow when the canister is full or the filter becomes saturated if the unit tips onto its side during use
. Once wet the filter forms a gel preventing fluids to the pump
. Click-in-place 300 ml canister, no vacuum tube needed
. 800 ml canister option when extra volume is needed
. Internal integrated filter systems for all canisters
. High efficiency filter kit (for 800 ml solution)
. HEPA rated bacterial filter and Big vacuum regulator dial
. Children vacuum range area (marked blue) on control panel
. Wire Stand for stability (for both versions)
. High density carry bags and Rechargeable Battery,
. Air Flow @ Vacuum Inlet: 30 LPM (free flow) typical
. Vacuum Max: 550+ mmHg (73.3 kPA)
. Vacuum Range: 50 – 550+ mmHg (6.7 – 73.3 kPa)
