The 20e is a single device ideal for any area of your facility – its like having two defibrillators in one. It features a dual mode design with an intuitive door system for both AED and manual use. Its a simple effective AED for first responders, yet it easily transforms into a manual defibrillator for advanced care professionals.
There are 7 main operating modes:
. Manual Mode: Provides a normal operating capability for ALS users. Allows access to manual mode energy selections up to 360J, synchronized cardioversion and pacing. ECG waveform is displayed.
. AED Mode: Provides a normal operating capability for BLS users. All user features are available except manual defibrillation, synchronized cardioversion, pacing, and access to archived patient records. Provides shock energy defaults up to 360J. User selectable option to display ECG waveforms and/or visual AED prompts.
. Service Mode: Allows the operator to execute diagnostic tests and calibrations, to display device module software and hardware versions, and to show/print the diagnostic code log
. Setup Mode: Allows the operator to configure the settings
. Auto Test Mode: Performs daily self tests
. Inservice Mode: Simulated waveforms are available for demonstration purposes. The waveforms consist of short segments of realistic data, which are repeated to form a continuous waveform.
. Archive Mode: Provides operator the opportunity to access records of previous patients for review, transmission, printing, editing or deletion
. Fully featured defibrillator/monitor (pacing, SpO2 and door, without paper or cables): 5.58 kg

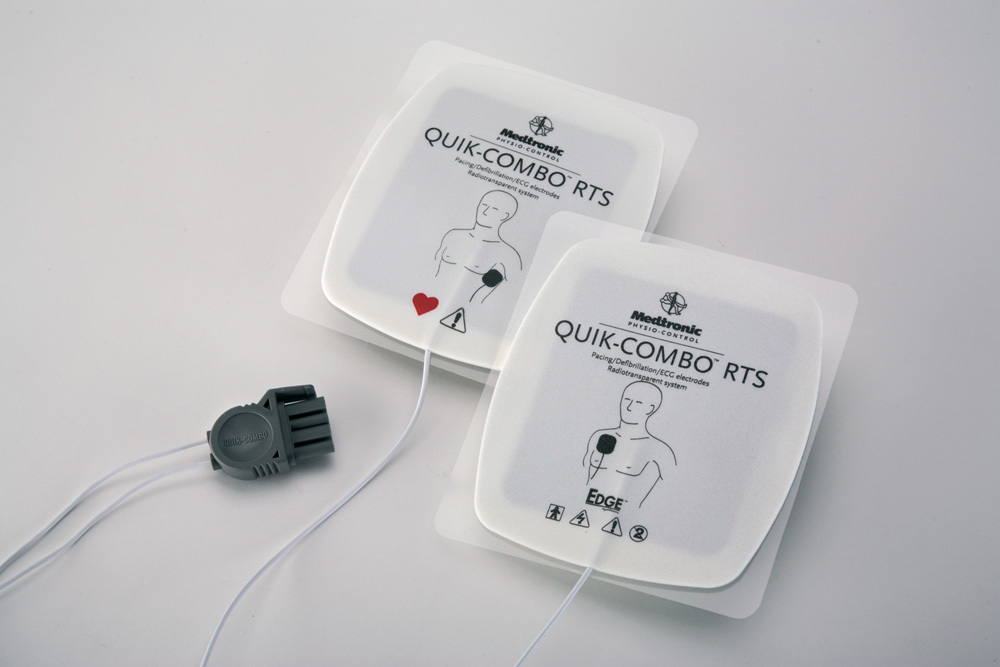

. QUIK-COMBO cable: 0.20 kg
. Standard (hard) paddles: 0.88 kg (1.95 lbs)
